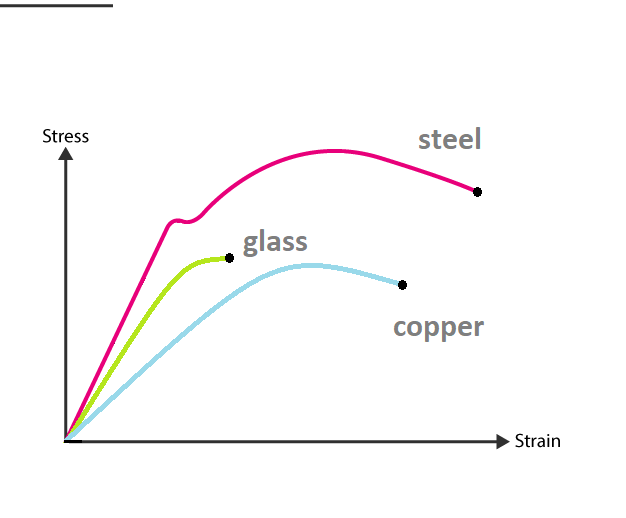

Other Stress-Strain Curves

Steel is ductile and has a high tensile strength.Glass is stiff and strong but not tough.Glass is brittle not ductile.Pure copper is a soft, ductile metal.
stiffness = gradientstrength = UTS (maximum tensile stress)
The toughness of steel and its ability to resist brittle fracture depend on a number of factors. Steel has imperfections which form very small cracks. If the steel is insufficiently tough, the 'crack' can propagate rapidly without plastic deformation and result in a brittle fracture.The risk of brittle fracture increases with thickness and tensile stress and cold temperatures.

Read the text

Read the text and highlight anything you think is important. When you go on, the text is hidden and you answer from memory.

Next

Specification: AQA Physics (7407), AS-level, 3.4.2.2 The Young modulus. Topic: Materials.
