Stress-Strain Graph for Metal Wire

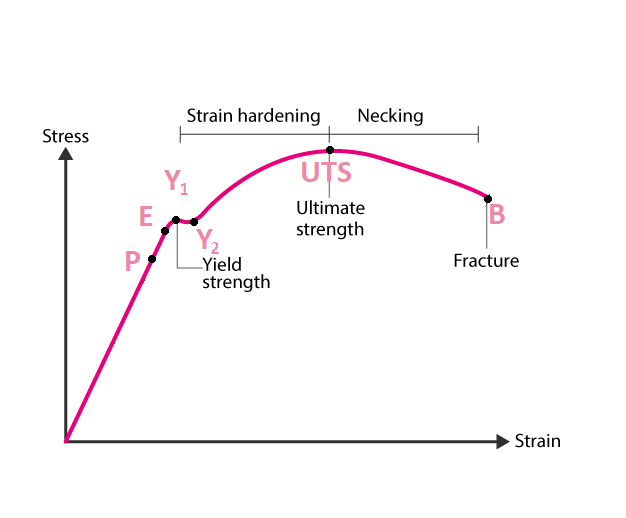

Stress-Strain Graph for a metal wire

P	limit of proportionality
E	elastic limit
Y₁	yield point (weakens temporarily)
yield point	small increases in stress causes a large increase in strain
UTS	maximum tensile stress
B	breaking point

Force-Extension Graphs

spring - obeys Hooke's lawRubber band - extends easilyPolythene strip - 'gives' after the initial stiffness, extends a little, then difficult to stretch

Read the text

Read the text and highlight anything you think is important. When you go on, the text is hidden and you answer from memory.

Next

Specification: AQA Physics (7407), AS-level, 3.4.2.2 The Young modulus and 3.4.2.1 Bulk properties of solids. Topic: Materials.

Key terms in this lesson

Resistance: The ratio of the potential difference across a component to the current flowing through it, measured in ohms.
Resistivity: A property of a material equal to its resistance multiplied by its cross-sectional area and divided by its length; it does not depend on the dimensions of the sample.
