At the bottom of the wheel, the weight acts downwards and the support force acts upwards. The centripetal force is given by S - mg, where S is the support force and mg is the weight.At maximum height, the weight acts downwards and the support force (reaction) from the seat acts upwards so the centripetal force is given by mv2/r = mg - R.When v2 = gr, there will be no support force on the person from the seat i.e. R = 0.The centripetal force F = mv2/r = mω2r

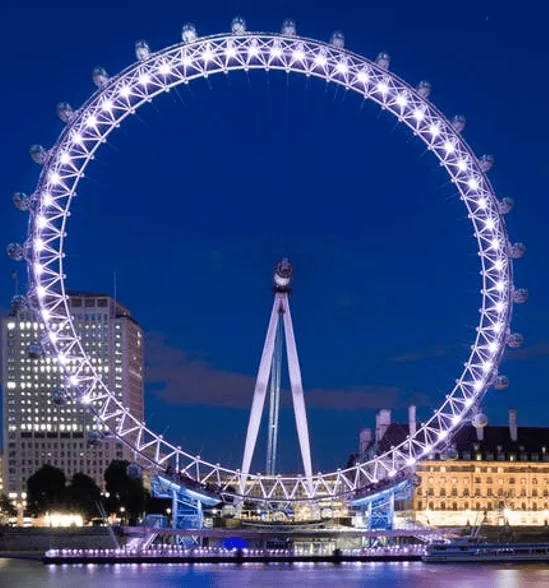

The London Eye
Read the text
Read the text and highlight anything you think is important. When you go on, the text is hidden and you answer from memory.
Specification: OCR Physics A (H556), A-level, 5.2.2 Centripetal force. Topic: Circular Motion.
Key terms in this lesson
- gravitational field
- A region of space in which a mass experiences a force due to the presence of another mass.
- gravitational potential
- The work done per unit mass to move a small test mass from infinity to a point in a gravitational field.
