Force-Time Graphs for Impacts

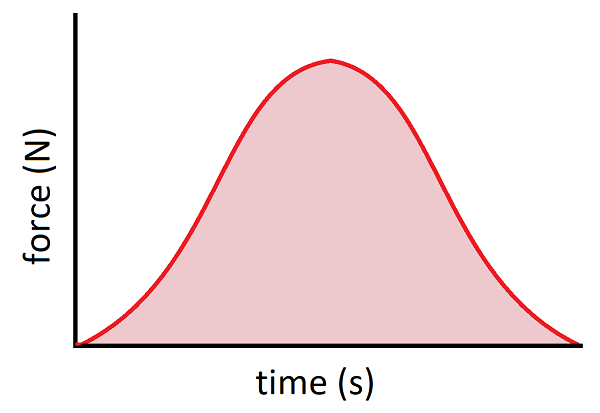

For impact forces if a graph of force against time is plotted, the area under the graph is the change in momentum or impulse.The impact force varies with time, increasing and then decreasing during the contact time.
F= mv − mu
t

Read the text

Read the text and highlight anything you think is important. When you go on, the text is hidden and you answer from memory.

Next

Specification: AQA Physics (7407), AS-level, 3.4.1.6 Momentum. Topic: Force and Momentum.

Key terms in this lesson

Equilibrium
An object is in equilibrium when the resultant force and the resultant moment acting on it are both zero.
