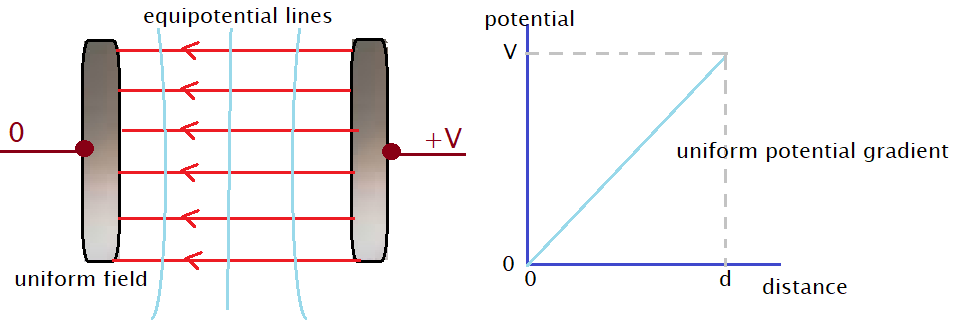

The potential gradient at a point in an electric field is the change of potential per unit change of distance in a given direction. In a non-uniform field, the closer the equipotentials are, the greater the potential gradient at right angles to the equipotentials.In a uniform field the equipotentials are equally spaced and parallel so the potential gradient is constant.The electric field strength E=V/d and is directed from positive to negative. The potential gradient is equal to V/d and increases in the opposite direction to the electric field.The electric field strength is the negative of the potential gradient.
Potential gradient
Read the text
Read the text and highlight anything you think is important. When you go on, the text is hidden and you answer from memory.
Specification: AQA Physics (7408), A-level, 3.7.3.2 Electric field strength and 3.7.3.3 Electric potential. Topic: Electric Fields.
